ARB RIDER AWG-5000 ARBITRARY WAVEFORM GENERATOR

World’s Fastest 16 Bit Arbitrary Waveform Generator

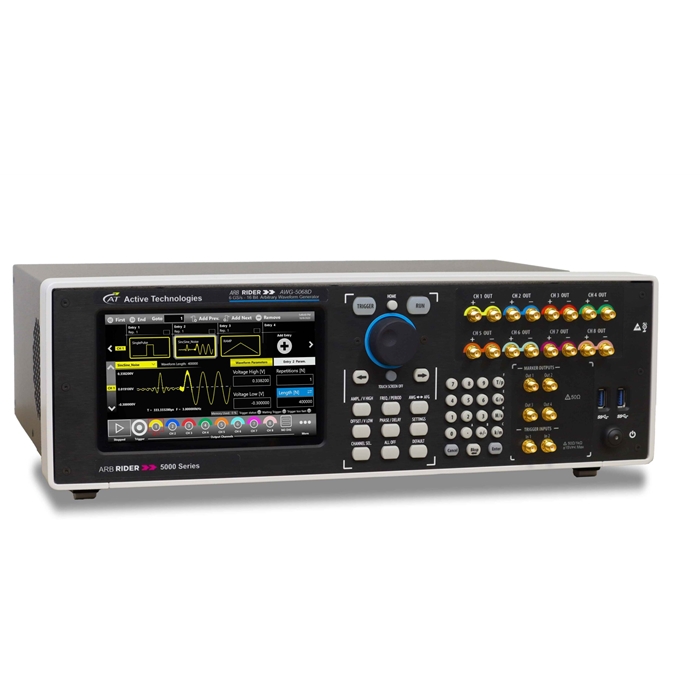

The ARB Rider AWG-5000 is the world’s fastest 16 bit Arbitrary Waveform Generator: 6.16 GS/s real time update rate (12.32 GS/s in RF mode) and 16 bit vertical resolution. Available in 2, 4 or 8 channel models, Arb Rider AWG-5000 is the fastest AFG (Arbitrary Function Generator) in the world, reaching up to 2 GHz sine wave. Thanks to Simple Rider software, AWG-5000 offers best in class performances and extremely easy to use interface.

2 GHz bandwidth, up to 5Vpp output range and up to 4 Gsample memory depth, makes the AWG-5000 is the ideal choice for Physics Experiments, Quantum computers, and Aerospace & Defense applications.

Thanks to the integrated up conversion functionality (RF MODE) it’s possible generate signals up to 6 GHz

Models

MODEL	ANALOG CH	DIGITAL CH	SAMPLE RATE	RECORD LENGTH	VERTICAL RES.	MAX FREQ.	MAXIMUM OUTPUT VOLTAGE	OUTPUT VOLTAGE WINDOW
AWG5062	2	8 (opt.)	6.16 Gs/s	2 or 4 Gpts	16 bits	2GHz	5Vpp on 50 Ohm	10Vpp
AWG5062D	2	8 (opt.)	6.16 Gs/s	2 or 4 Gpts	16 bits	2GHz	1.5Vpp on 50 Ohm	5.5Vpp
AWG5064	4	16 (opt.)	6.16 Gs/s	2 or 4 Gpts	16 bits	2GHz	5Vpp on 50 Ohm	10Vpp
AWG5064D	4	16 (opt.)	6.16 Gs/s	2 or 4 Gpts	16 bits	2GHz	1.5Vpp on 50 Ohm	5.5Vpp
AWG5068	8	32 (opt.)	6.16 Gs/s	2 or 4 Gpts	16 bits	2GHz	5Vpp on 50 Ohm	10Vpp
AWG5068D	8	32 (opt.)	6.16 Gs/s	2 or 4 Gpts	16 bits	2GHz	1.5Vpp on 50 Ohm	5.5Vpp

Pulses for All Your Needs

Whether it is generating a complex pulse train, a series of radar pulses, pulsed RF signals with impairments, Gaussian pulses,multi-level pulses, double pulses for IGBT/Mosfet experiments, pulses for Advanced Research and Quantum computing, the AWG-5000 is the ideal partner for all your most complex tests and cutting-edge applications.

Highlights

Up to 5Vpp into 50 Ohm Pulse Amplitude with ± 2.5V hardware offset
110 ps Rise and Fall Time
Minimum Pulse Width: 230 ps
Shape easily your Pulse Transitions

Quantum Computing and RF Wireless

The AWG-5000 is the right choice for the frontier of science and technology experiments and cutting-edge challenges like Quantum, High Energy Physics, Optical and RF Wireless Communication.

The AWG-5000 Series instrument can create virtually any signal – analog or digital, ideal or distorted, standard or custom. You can easily build complex RF/IF/IQ waveform or generate serial data streams on your PC and transfer it to the AWG.

Highlights

Minimum delay between Trigger In and Analog Out
Up to 32 analog channels and 128 digital channels fully synchronized
Built-in sequencer with conditional/unconditional/dynamic jump features, two independent Trigger Inputs, up to 4 Marker outputs

Radar, LiDAR Design and EW

Wideband radar and electronic warfare systems need high fidelity signals to replicate real-world situations and complex environment scenarios.

Moreover, nowadays automotive solutions need to create accurate and reliable tests to prove safety under a variety of test conditions is key: LiDAR is one of the strategic components for these kinds of solutions.

Key Features

Generate Radar test signals with excellent spurious performance
Create Electronic Warfare complex scenarios with up to 16384 sequencer entries and Advanced Sequencer conditional/unconditional jumps.
Build up LiDAR signal testing for aerospace & defense, automotive and mobile devices solutions
Create test waveforms using the Waveform Editor software or import them using third-party applications like MatLab, Labview, .NET languages, etc.

Waveform Editor: Powerful and Easy

The Waveform Editor allows you to create easily the most complex shapes for your radar pulses, physical research pulses, real-world signals, and complex environment signals. It is included in the standard software package.
